Diesel Drinker
Joined
·
1,538 Posts
To make Hills, Cuttings, & any Features I have been using only 3 products.

1. Kingspan.
2. Mod rock.
3. Lightweight Filler.

The above products can be found at you local builders merchants & craft shops.

Kingspan is an insulating product for the house building market, this is easily glued & cut to shape with minimal mess.

Mod rock, you know what this is.

Lightweight filler, this just like icing a cake !

Easy, quick drying & cheap.

Or I am a fool !







Enjoy........................


·
Premium Member
Joined
·
6,201 Posts
Hi TheBufoon,

Welcome to the forum

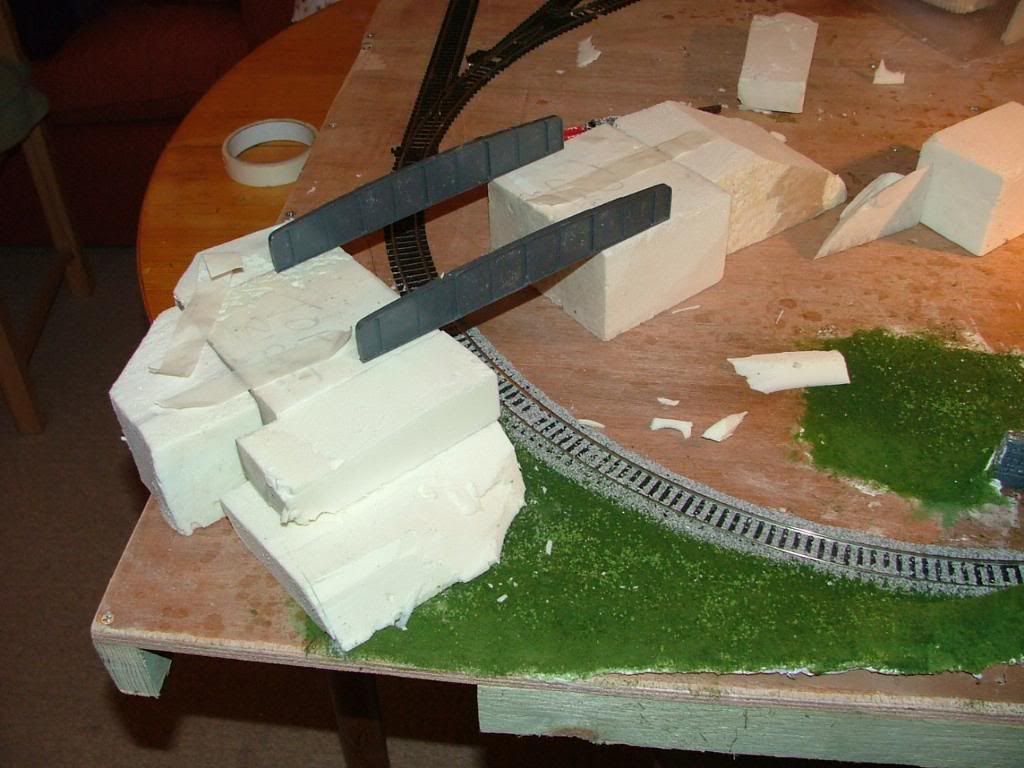

I use the insulation board on my layout extensivley to create rockfaces so cant reccomend it highly enough to create landscape and scenery quickly with light weight.

Some pictures of it here ......... http://www.modelrailforum.com/forums/index...5965&st=105


·
Diesel Drinker
Joined
·
1,538 Posts
Discussion Starter · #3 ·
Thanks for the welcome,
I like your post, but I do prefer using moulds for rock faces, I get the effect of true Limestone from the Woodland Scenics moulds.
Although getting the right colour is somthing I am working on !


·
Premium Member
Joined
·
6,201 Posts
QUOTE (TheBufoon @ 16 Mar 2009, 01:09) <{POST_SNAPBACK}>Thanks for the welcome,
I like your post, but I do prefer using moulds for rock faces, I get the effect of true Limestone from the Woodland Scenics moulds.
Although getting the right colour is somthing I am working on !

Hi,

Try using woodland scenics pigments for the cast rocks .... dont get any glue on the rockfaces as it forms a barrier and the rock will not colour with the pigments.
Also a search on google images shouldd give you good ideas for colours.

This video on the Woodland scenics site may be useful ...... http://woodlandscenics.woodlandscenics.com...ColorRocks.html

A visit to the main page has more videos on some are silent but good tutorials ........
http://woodlandscenics.woodlandscenics.com/index.cfm


·
Registered
Joined
·
2,465 Posts
Personally, I wouldn't use polystyrene - it's flammable and gives off toxic fumes and some people say (although I've never had this experience because I don't use it), that it interferres with insulation on wires.

I would highly recommend using plaster for rocks or any kind of stone work. Plaster has a natural absorbant capability which means it is a very good medium for water colours, which I assume is what the Woodlands pigments are. The following in an article about a tunnel mouth I built using plaster and water colours:

http://www.mrol.com.au/TunnelMouth.aspx

This one is the same technique with a viaduct:

http://www.mrol.com.au/Viaduct.aspx

...and the parapits to a steel bridge:

http://www.mrol.com.au/SteelBridge.aspx

The ket yo using water colours is to use __VERY__ watery coloured washes. You can darken water colours, but you can't lighten them. Progressive washes with tone changes along the way can give some very reallistic effects for stone and rock. I honestly wouldn't do it any other way.
Don't forget the weeds on the rock ledges!

Graham Plowman


·
Bog Snorkeller
Joined
·
987 Posts
When making scenery out of numerous different materials you often finish up with a construction where some of it will take paint and other bits of it, like glue, won't. Nip out and buy some artists acrylic 'Gesso'. Basically a brush on white primer. It takes stain and water colours really well and you dont get any differences in colour between different materials like glue, card, wood, polystyrene etc, and it makes everything take colour the same! This is important if you have items joined together with glue so you don't get those awful matt mixed with shiny colours or, worse still those materials that won't take water colour and just make pools.

If you mess it up, just give it another coat of Gesso and start again.

Obtain from an artists shop or places like Hobbycraft.

Mike


·
No Longer Active.
Joined
·
13,319 Posts
QUOTE (Graham Plowman @ 15 Jun 2009, 07:22) <{POST_SNAPBACK}>Personally, I wouldn't use polystyrene - it's flammable and gives off toxic fumes and some people say (although I've never had this experience because I don't use it), that it interferres with insulation on wires.

An alternative is styrene - similar to what florists use - you can get it from builders merchants. It does not leave those infernal "polyballs" that you find forever after cutting.

I think the"interferres with insulation on wires" is actually the fact that cables run within polystyrene or other insulations should be downrated because they can tend to overheat otherwise - basically, you generally use the next size up.


·
Registered
Joined
·
1,630 Posts
I've seen talk elsewhere that the polystyrene leaches the plasticiser out of PVC wire insulation and eventually causes it to disintegrate. Like Graham I've never tried it so don't know if it is true, but it sounds like yet another reason to keep mains wiring separate from the layout and an annoying issue for low-voltage wiring if it eventually leads to hard-to-trace short circuits.


·
Administrator
Joined
·
9,844 Posts
QUOTE I've seen talk elsewhere that the polystyrene leaches the plasticiser out of PVC wire insulation and eventually causes it to disintegrate

I've read similar comments which are usually followed up by .... "and that is why all leads are packed in polythene bags when being shipped to customers".

David


·
Premium Member
Joined
·
562 Posts
POLYSTYRENE WARNING

The effect of polystyrene on electric cable / wire insulation can be very dramatic to look at, sort of skin cancer for plastic.
If you can imagine something like UHU glue being dabbed on the cable in big blobs and bits of polystyrene stuck to it which are impossible to remove completely.
The polystyrene and the insulation literally melt together and the damage can completely eat through the insulation to the wire if given time.

Before the inert forms of loft insulation became more common in the 1970's bags of broken pieces of polystyrene were sold for that purpose, (there must be hundreds of houses with damaged mains wiring), and it has been used for insulation in the cavity walls of property for some years, my own property has it so any cabling that passes across the cavity has to be done with that in mind. Being a bungalow cables now go over the top of the side walls but some installed before we moved in were damaged. The armoured type of cables used for garage feeds or from external meter cupboards to internal fuseboxes, from what I have seen, do not have the same problem, due to a different chemical composition of the insulation to that of normal T&E (twin & earth). No doubt someone will correct me if I am wrong.

There is a problem for people like myself who are using baseboards with a polystyrene core, White Rose Modelworks in my case, when putting in the track feed droppers as they will be affected in time. I am intending to fit a suitable size sleeve, probably metal as opposed to heat shrink, through the top and the 40mm of polystyrene core.
Although this adds to the cost, the advantages of not having to consider framing when locating point motors etc. and the deeper sides (99mm) giving a 50mm space inside the frame for DCC decoder boards and connectors is, in my case well worth it.

There was a warning about using polystyrene for scenery and laying the wiring in/on it in, if I recall rightly, the June edition of Model Rail.

Sorry to ramble on a bit but it is something that needs to be considered when choosing the scenery materials and if anybody does use it, I would not recommend shaping it with a hot wire or anything else unless there is VERY GOOD VENTILATION with some form of extraction preferably. The fumes are not nice to say the least especially if you suffer from chest or lung problems - just don't consider it in these cases.

Chris
