[christian Wright]

Hello everyone, I have just finish building a Lisbona Tram 1/24

Kit taken in my country from Kreativity World shop, here specifications and measures..

https://www.kreativity-world.com/it/prodott...ccre-53005.html

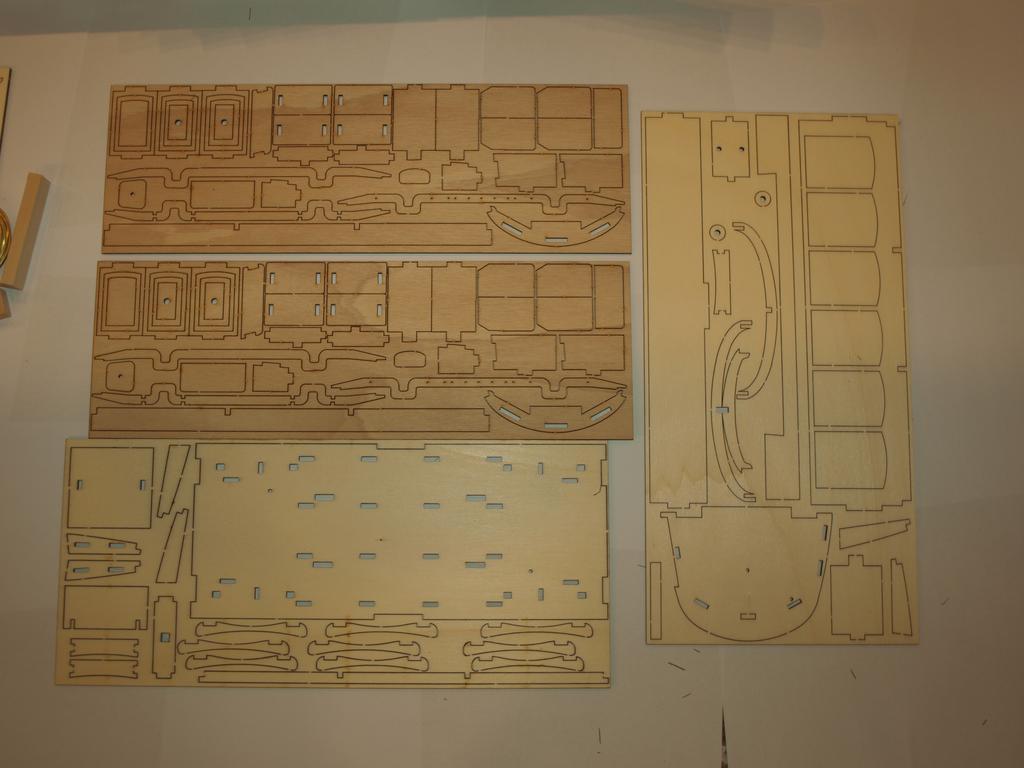

Kit box content:

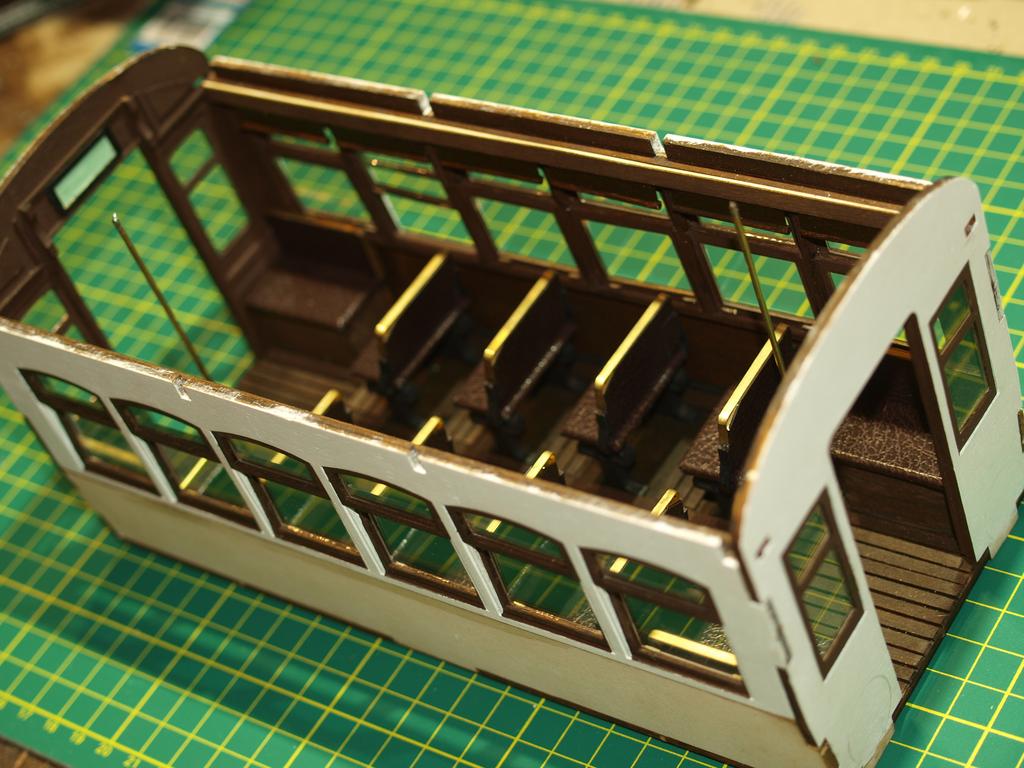

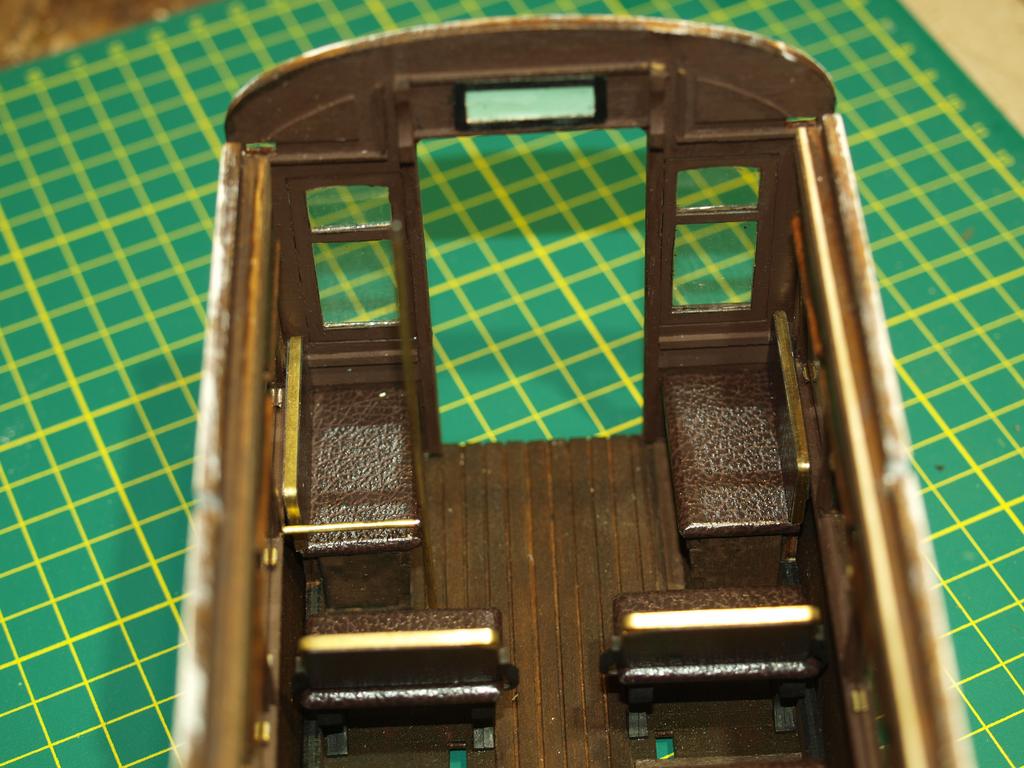

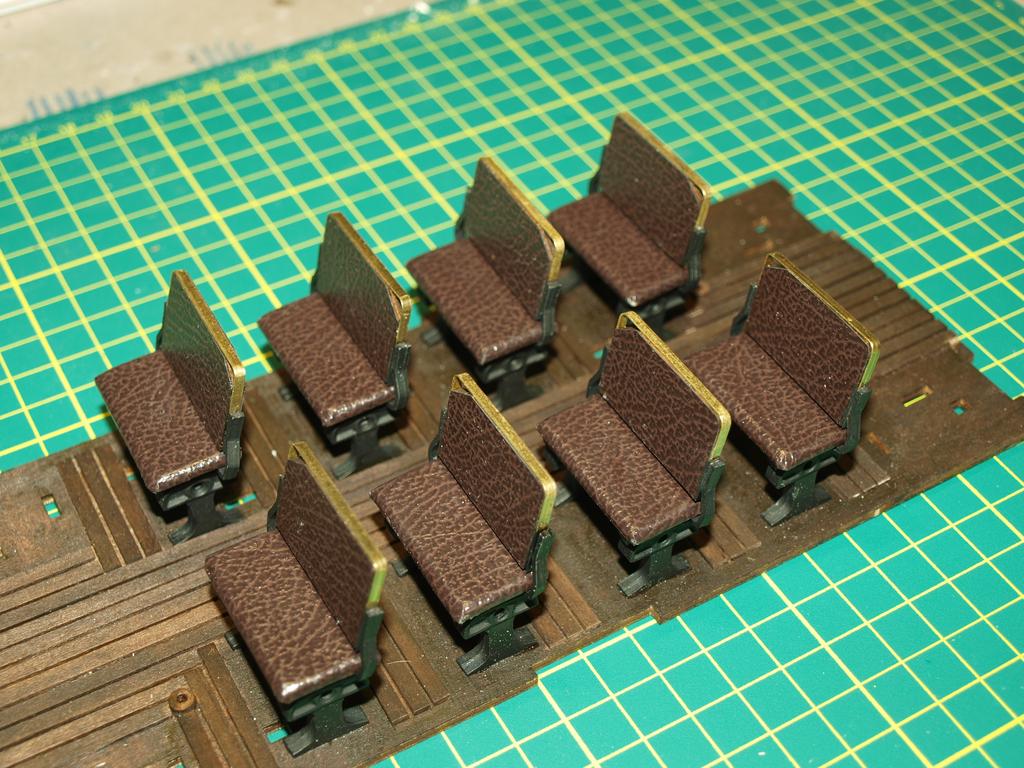

Build log start from floor and seats

I use real 1.mm glass to make windows, is a box of microscope slides.
I prepared a frame to cut the glass.

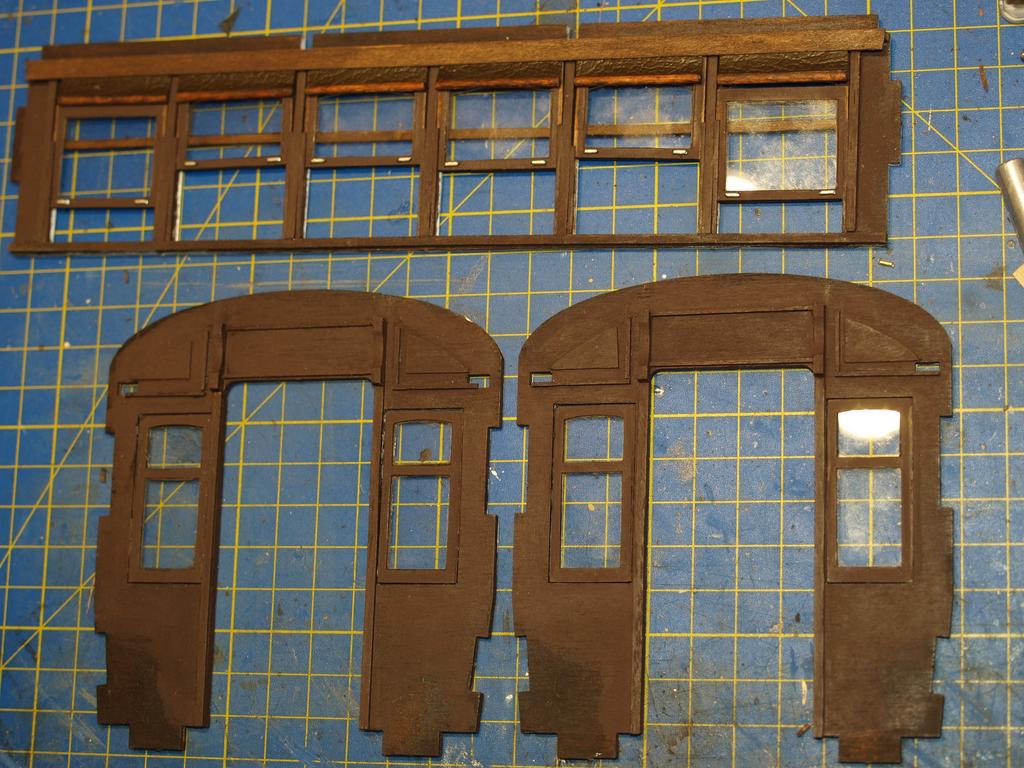

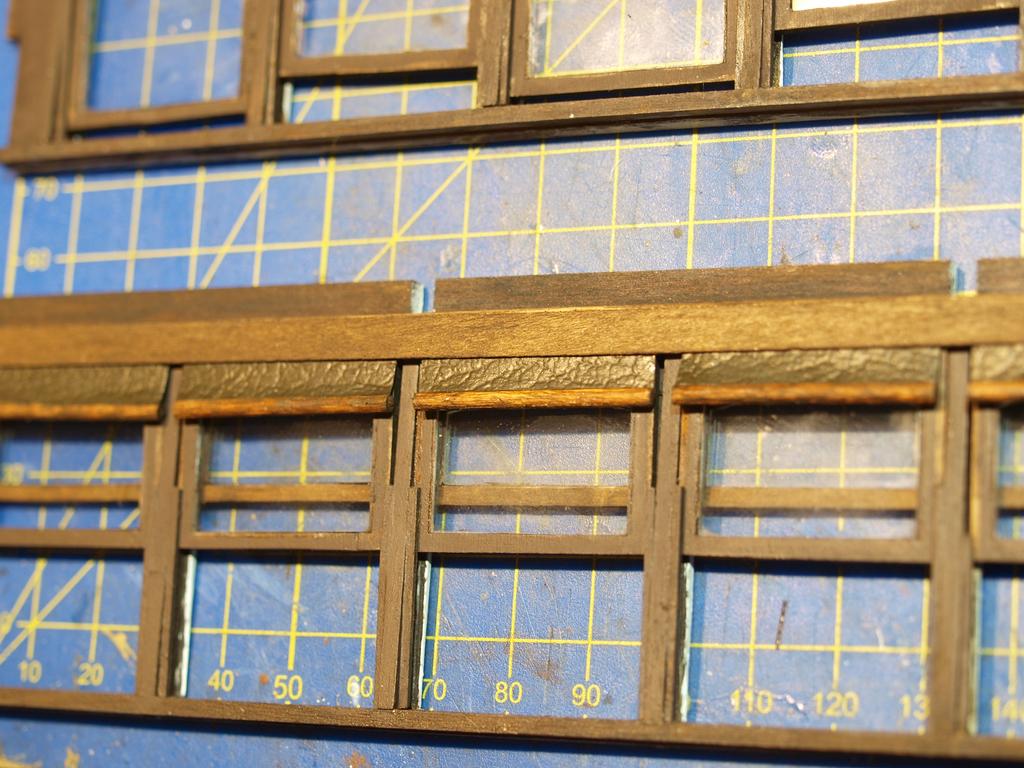

I have adjusted microscope glass with a thin wood strip as to fit inside frames, casually my glass microscope slides have one side 1mm less than frames, I chose to fill it.

OcCre Kit windows are basically glued, I have tried to make it openable.

I also add some details to walls



[christian Wright]

Inside roof and Led lights

light made with a washer and a brass ring

The front panel have 3 Led lights

I grouted all the cracks with cyan and talcum powder

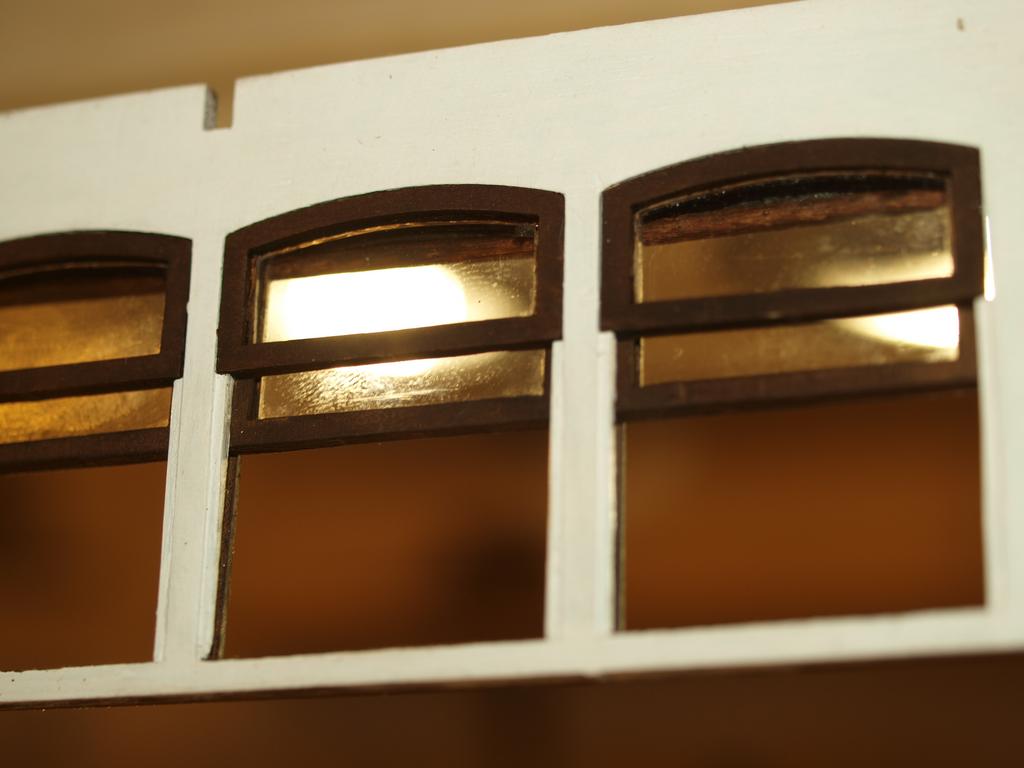

Other curve glass windows..

doors open with two Ripstop hinges

Some details add on sticker

Everything glued togheter



[christian Wright]

How I bend wood stripes for the roof

last Led lights and roof covering

How I made top insigna

Handmade motor unit first version.. (not so bad but shaky)

Roof complete



[christian Wright]

ciao.



[Richard Johnson]

*** A lovely model. How is the running quality?

regards, Richard



[Mike Buckner]

A really nice model - something to be proud of



[christian Wright]

running quality is not bad.. shake just a little, I have to check bushings on my motor unit and learn more about how to make worm gears..
also Soller have a handmade motor unit quite similar, a littlebit better..
you see here..



[Oldbiker]

It’s obvious you have put a lot of effort into this model, and I must say the quality shines through, you must be an extremely patient modeller, well done 👍



[kevsmith]

Very nice.

there is something deeply satisfying in making models of wooden rolling stock out of wood. I used to use it a lot back in my gauge 1 and gauge 3 days and although the models took a lot longer than the stock I made out of plastic the results were always more worthwhile

is the kit still available?

Kev
